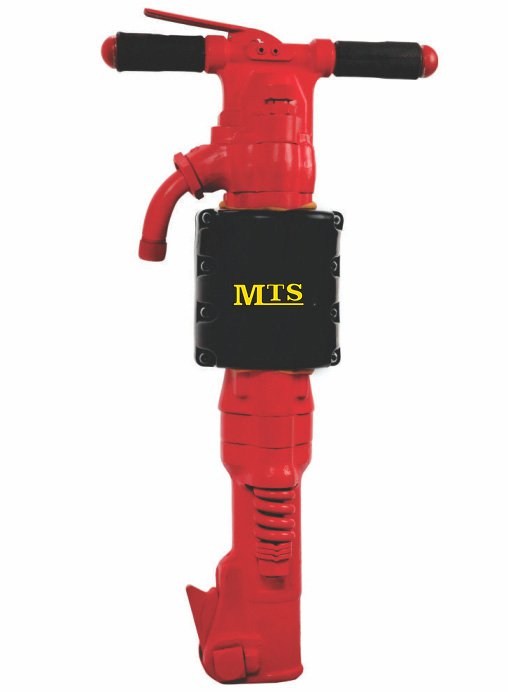

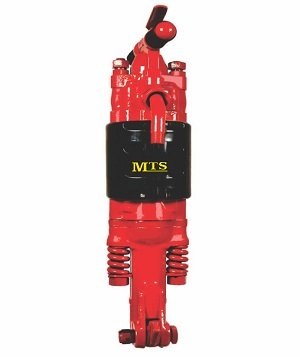

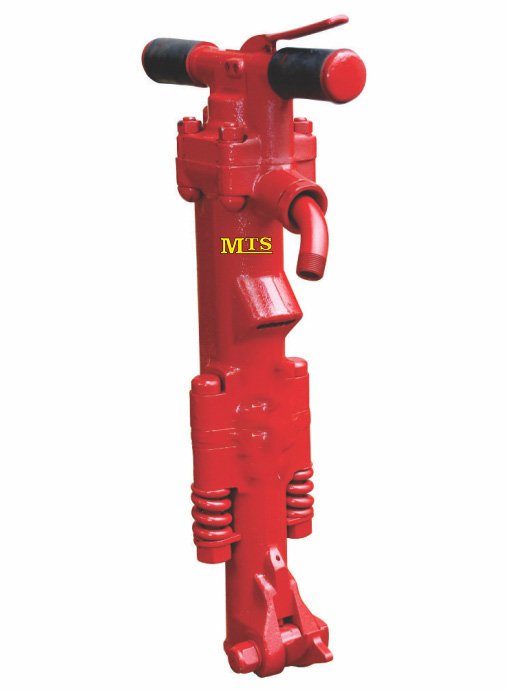

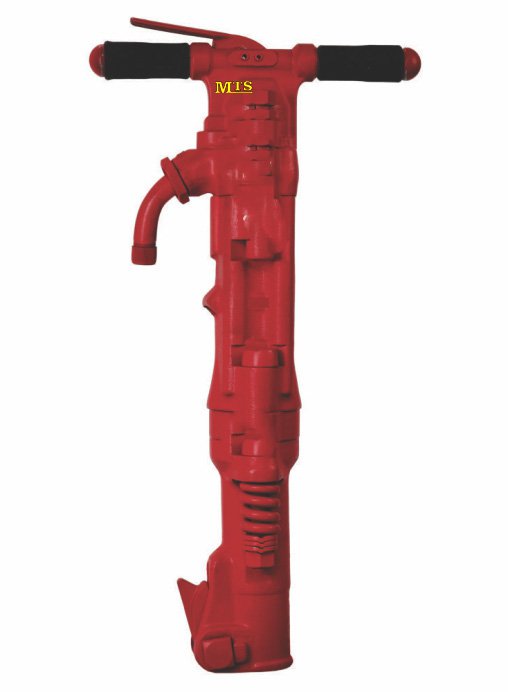

MTS 117L - Pneumatic Breaker



Specification-All Models

  • Forged steel housing withstand rugged use.
  • Low weight ,high torque.
  • Very reliable and resistant to wear
  • Large sliding face,high impact energy
  • Good penetration in hard and soft rock
    • Model MTS 117L
    Weight with silencer 41 kg 91 lb
    Weight without silencer 40 kg 89 lb
    Length 710 mm 28″
    Air pressure 6 bar 87 psi
    Air consumption 35 l/s 74 cfm
    Blows per minute 1200
    Piston dia 57 mm 2.25″
    Piston stroke 165 mm 6.50″
    Air inlet 19 mm 3/4"
    Shank size (standard) 32 x 160 mm 1¼" x 6¼"
    Shank size (option) 28 x 160 mm 1¹⁄8″ x 6¼"
    Retainer type Latch










    Application Of MTS-1210

  • Low Spare parts consumption .
  • Blower for deep hole clearing
  • Robust kick-latch type retainers
  • Long stroke machine
  • Light weight ,low maintenance
